It’s no secret that eliminating complex manual processes reduces tech debt, decreases the likelihood of human error, and improves IT efficiency. However, when it comes to building private cloud solutions and integrating public and private cloud platforms the level of customization and complexity required often leads to IT using manual processes they’d prefer to avoid.

In VMware environments, vRealize Automation (vRA) infrastructure automation helps solve this problem. In this article, to help you get the most out of this automation tool, we’ll review the platform in-depth, explore what’s changed in vRA 8, and walk through the deployment process so you can get hands-on with vRA.

vRealize Automation: A crash course

vRealize Automation, currently at version 8.6, is part of VMware’s vRealize Suite. The vRealize Suite includes a variety of software solutions aimed at operations, automation, orchestration, and cloud.

The  VMware vRealize Suite. Source

vRealize Automation is primarily a private or hybrid-cloud utility. It can be used to provide customers with access to applications, services, and virtual machine (VM) deployments via a web portal.

vRA also provides mechanisms for extensibility and integration into and between third-party infrastructure and application management tools and public cloud platforms such as AWS and Azure.

The different vRA capabilities can be categorized as Infrastructure as a Service (IaaS), IT as a Service (ITaaS), and Anything as a Service (XaaS).

The specific capabilities of a given vRA instance depend on the vRealize license in use. The table below details the different capabilities for the two current vRealize license types.



vRealize Automation License Comparison
Capability vRealize Advanced vRealize Enterprise Edition
IT Services Infrastructure only Infrastructure and applications
Clouds On-premises and VMware Cloud Any cloud
Resource lifecycle management Included Included
Native public cloud services Can embed native public cloud services constructs in blueprints
Integration with configuration management tools Included
Kubernetes support Included
Cloud agnostic blueprints Included
VMware Code Stream Included

The history of vRealize Automation: From DynamicOps to vRealize Automation

vRealize Automation was originally an internal project at the famous investment bank Credit Suisse. The bank used the tool to automate Windows deployments. It proved so successful that they decided to go public with the software and formed an off-shoot organization, DynamicOps, via venture capital. It was marketed under the name Cloud Automation Center in 2008.

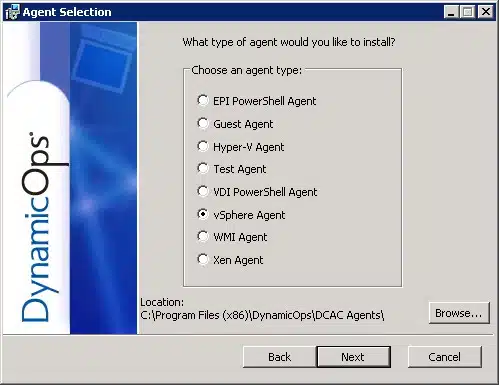

A  Cloud Automation Center agent installation (Source)

Cloud Automation Center was designed to automate the deployment of virtual machines against different hypervisors, including ESX, Hyper-V, and Xen, and the provisioning of physical systems via DRAC and iLO.

Because of this multi-platform capability, it used many different connective agents, leading to complex deployment and architecture, particularly in highly available (HA) configurations.

The main components of the Cloud Automation Center product were a Windows Server that acted as the IaaS Server and an external MS SQL Database. These servers enabled provisioning and managed the lifecycle of virtual machines via Windows Workflow Foundation (WF). An additional Windows server running IIS provided the Cloud Automation Center user interface.

Hybrid Cloud Solutions Demo

See the best multi-cloud management solution on the market, and when you book & attend your CloudBolt demo we’ll send you a $100 Amazon Gift Card.

Book demo

The DynamicOps acquisition, creation of VCAC, and feature expansion

In 2012, VMware purchased DynamicOps, and the technology evolved to become vCloud Automation Center (VCAC). VMware added a new front-end web portal and began the long process of rewriting large swaths of code with each new upgrade.

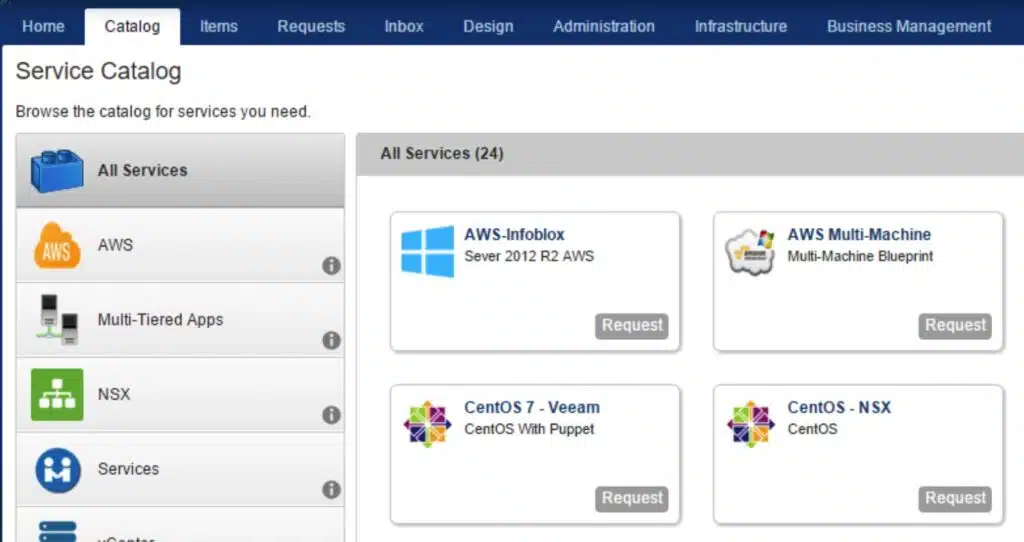

A screenshot of the VCAC Service Catalog (Source)

After the rebranding, VMware added several new features to VCAC. For example, updates introduced a new mechanism to interact with “Endpoints” via Distributed Execution Manager (DEM). DEMs consisted of two types, Workers and Orchestrators. The Worker’s job was to execute IaaS lifecycle workflows (provisioning operations) while the Orchestrator kept track of the Worker’s status and the workflow’s execution state.

Typically, two Orchestrator machines were deployed onto Windows servers for High Availability, with one being active and the other passive. Multiple DEM Workers were deployed, with each one interacting with a specific target, such as AWS, Openstack, RHEV, or SCVMM.

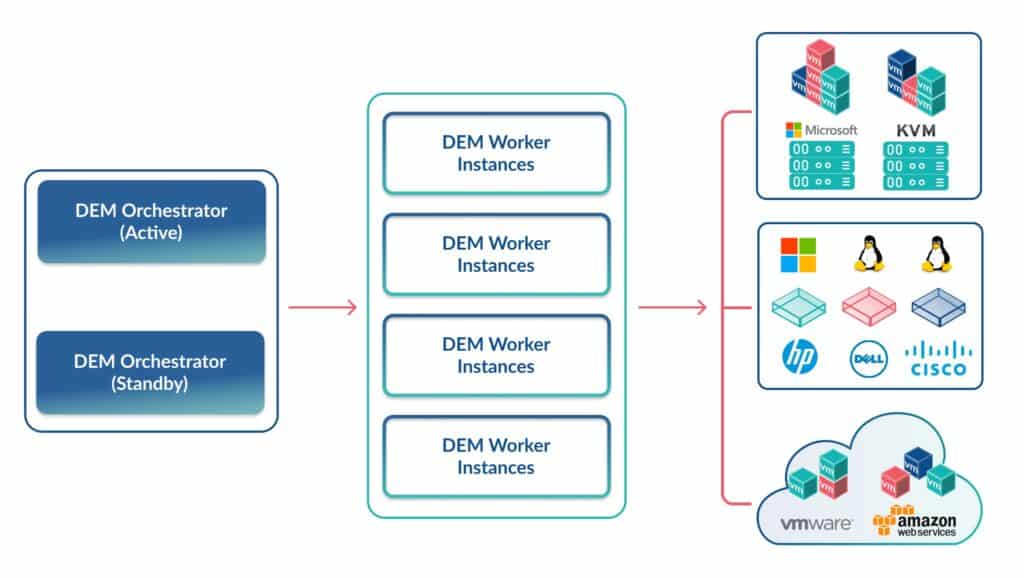

The relationship between DEM Worker and Orchestrator (Source)

VMware also added support for multi-tenancy, identity management, per-tenant web portal branding, approval workflows, and XaaS via integration with vCenter Orchestrator (vCO).

vCO, now known as vRealize Orchestrator, is an extensibility tool that can execute custom code against a target. It can utilize REST and SOAP or even SSH connections to connect to any server or application and execute scripts, commands or API calls as part of an automation workflow. It ships with several API plugins to connect to platforms like vCenter and NSX immediately out of the box. Additional plugins are available via third-party vendors and can even be created by individual developers as needed.

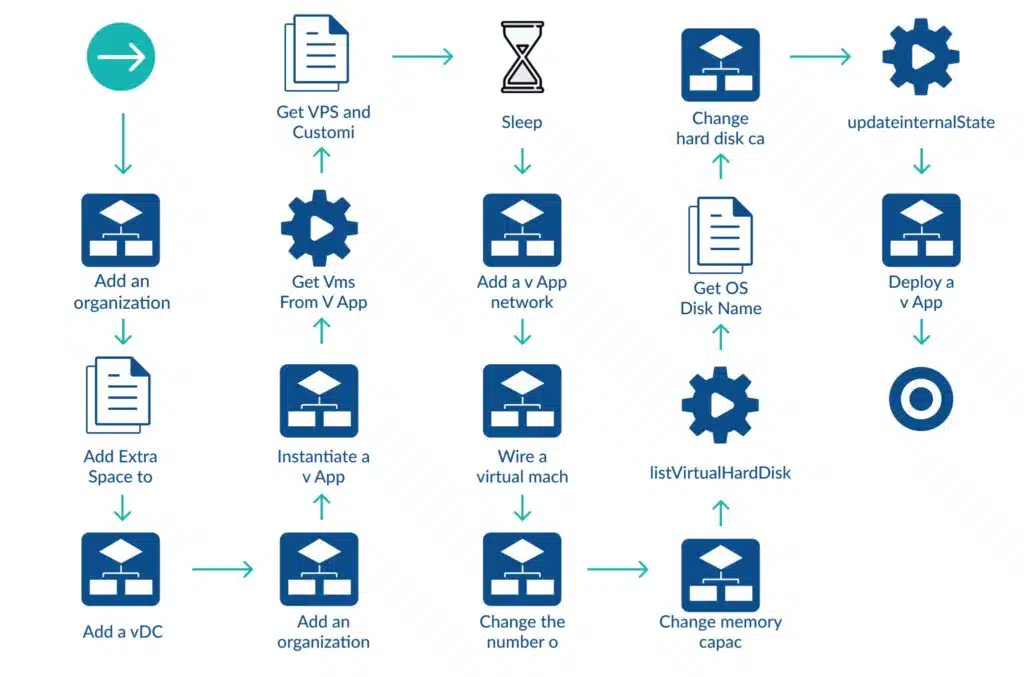

A VRO Workflow (Source)

VCAC becomes vRealize Automation Center

In 2014, VCAC was rebranded vRealize Automation Center (vRA) and added to version 6.2 of the vRealize Suite.

At this point, vRA became extremely powerful. However, it was also very complex. The major components of vRA were usually installed onto separate servers and often doubled up and placed behind load balancers for high availability. At this point, components of vRealize Automation included:

  • vRA Appliance: The modern web portal for end-users, providing a configurable catalog of services based on their identity.
  • IaaS Website: The legacy DynamicOps web portal, still used but referenced and accessed via the vRA appliance portal.
  • Model Manager: Contained the IaaS business logic to deploy machines via workflows against target systems.
  • IaaS MS SQL Database: Used to store IaaS data.
  • DEM Orchestrator: Took instructions from the Model Manager and executed them against an appropriate DEM Worker.
  • DEM Workers: Performed provisioning operations against a target system such as AWS or Microsoft’s System Center Virtual Machine Manager and so on.
  • Proxy Agents: Agents were used before the more intelligent DEMs. For legacy support, proxy agents were still required to interact with target endpoints such as vCenter, Hyper-V, VDI infrastructure, and WMI. An agent was required per endpoint, so if you wanted to provision VMs to two vCenter Servers, two agents were required. These agents were installed onto Windows servers.
  • vRealize Orchestrator: An orchestration and workflow development engine deployed in pairs for high availability.
  • vRealize Business: Provided resource analysis, costing, and chargeback utility.
  • NSX: An optional component used to provide network objects for virtual machines.

Troubleshooting, deployment, and general manageability became significantly complex given the complex stack of components. For example, the diagram below demonstrates how a robust enterprise-grade deployment may have been configured.

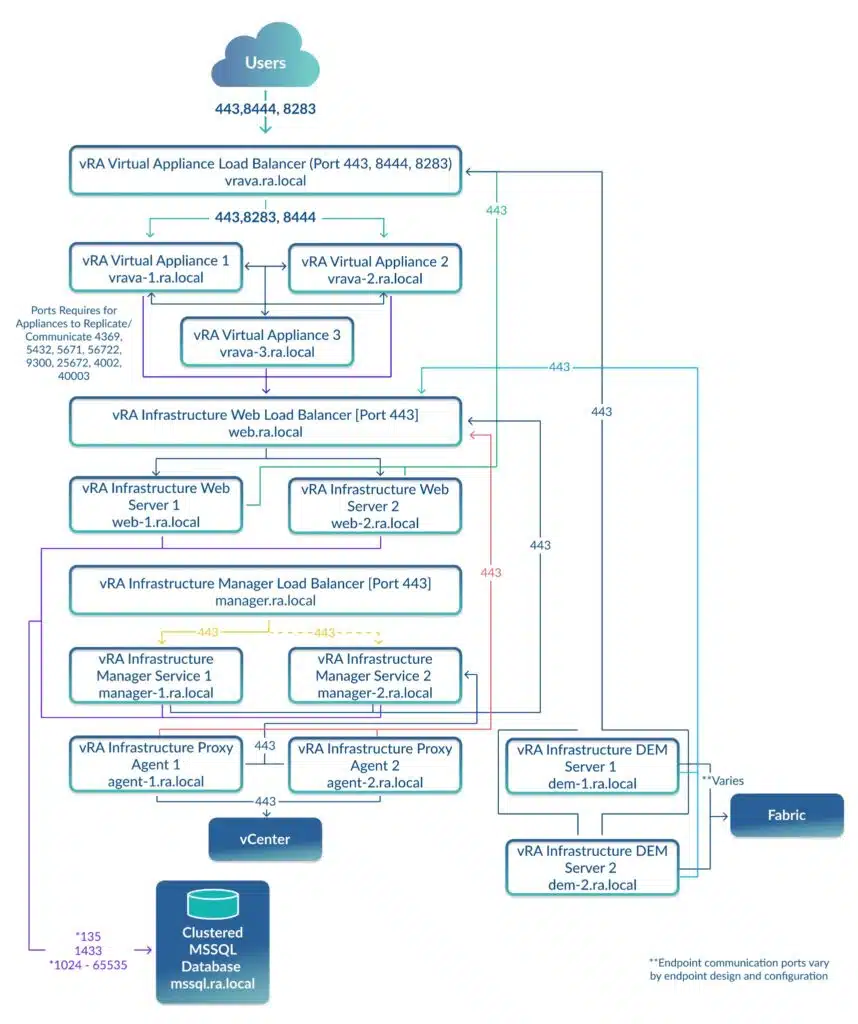

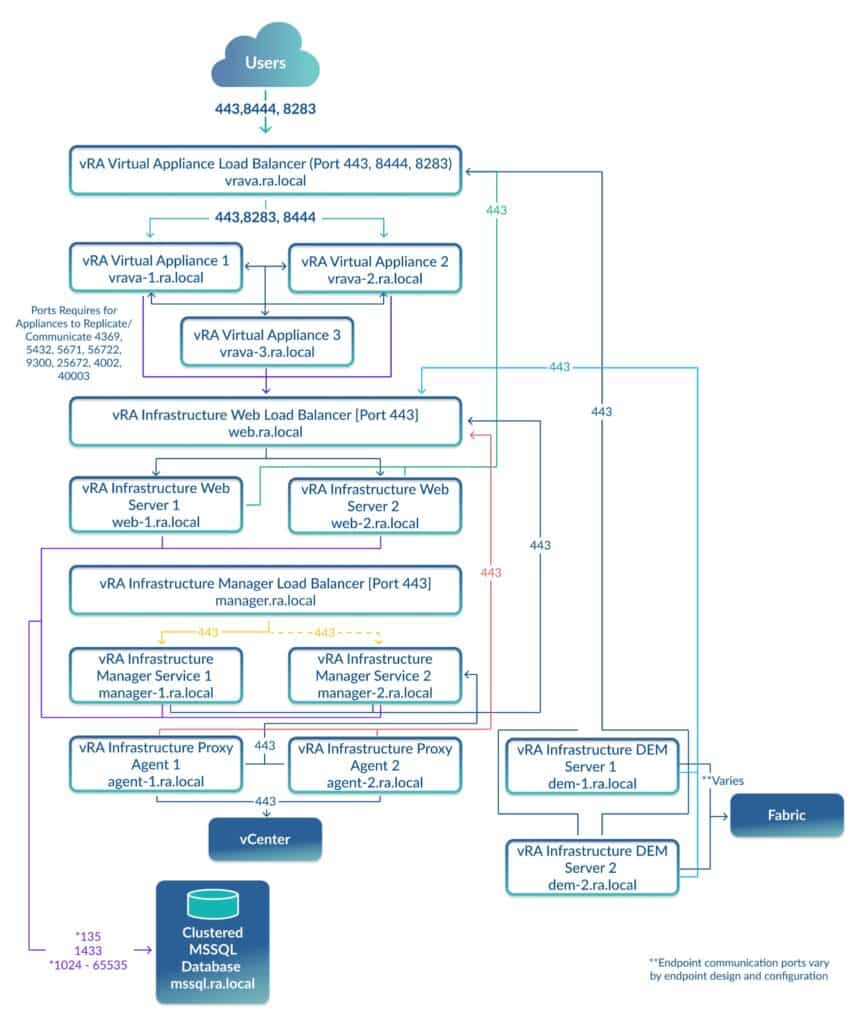

A large enterprise-grade deployment of vRA. Source.

Reducing complexity with vRA 8 Architecture

VMware recognized that vRA’s complexity needed to be addressed, and they did just that with vRA 8.

In many ways, vRA 8 is a different product operating under the same name. Legacy code is gone and the architecture and APIs have undergone a complete overhaul. For example, there are no more Windows Operating system dependencies, freeing up license costs and avoiding vendor lock-in. Additionally, the new architecture is streamlined and consists of far fewer components.

vRA 8 is containerized

To provide high availability while maintaining simplicity, VMware containerized the various vRealize Automation services. Docker is used to physically run the services as containers via Helm, while a special self-deployed and self-managed distribution of Kubernetes orchestrates and provides service availability and accessibility.

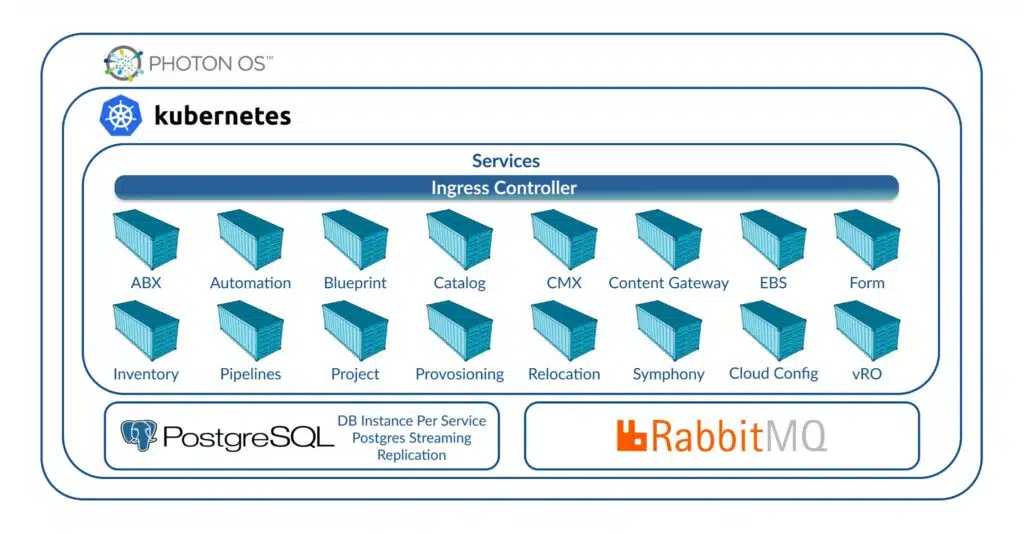

The Kubernetes managed microservices running with the vRA appliance (Source)

vRA is now just three appliances!

At its most basic, a vRA deployment now consists of the following appliance types:

  • vRealize Suite Lifecycle Manager Appliance: Handles the installation, patching, upgrading, and configuration management of products within the vRealize suite.
  • VMware Identity Manager: An Identity as a service (IDaaS) solution used by vRA as an SSO mechanism, allowing login and authentication to vRA.
  • vRealize Automation: A Photon Linux appliance running the core functionality, user interface, and business logic.
A comprehensive approach to hybrid cloud management
Platform
Multi Cloud Integrations
Cost Management
Security & Compliance
Provisioning Automation
Automated Discovery
Infrastructure Testing
Collaborative Exchange
CloudHealth
Morpheus
CloudBolt

New vRealize Automation Terminology

vRA 8 also comes with a new set of terms and concepts. For example, vRA 7 Reservations and Reservation Policies have been by Capability and Constraint Tags in vRA 8. Below is a mapping of old versus new terminology for popular vRA objects.

vRealize Automation Terminology vRA 7 vs. vRA 8
vRA7 vRA8
Blueprints Blueprints
XaaS Blueprints Service Broker Content (ABX/vRO)
Software Components Cloud-Init (Linux), Cloudbase-Init (Win)
Business Group Project
Reservations Capability/ Constraint Tags
Endpoints Cloud Zones
Cluster Compute Resource Compute
Naming Prefix Custom Naming Template
Reservation Policy Capability/ Constraint Tags
Storage Reservation Policy Storage Profile
Entitlement Content Sharing / Day 2 Actions Policy
Network Profile Network Profile
Template Image Mapping
Component Profile Flavor Mapping

vRA 8 new capabilities

Along with a streamlined architecture, vRealize Automation now ships with several new capabilities, including:

  • Multi-cloud support: Ability to deploy Hybrid Cloud into Azure, Google Cloud Platform, and AWS.
  • Native Cloud Features: vRA can embed third-party cloud constructs and objects into vRA Blueprints.
  • Cloud Agnostic: Blueprints can be designed to deploy into any cloud without requiring custom configurations or specifications.
  • Infrastructure as Code: Blueprints are implemented as YAML via a drop and drag design canvas.
  • Action Based Extensibility (ABX): Enables extensibility via Python or Node.js as an alternative to vRealize Orchestrator workflows.
  • vRO Integration: vRO now runs as a Kubernetes managed service directly inside the vRA appliance.
  • Kubernetes workload support: vRA can manage Kubernetes-based workloads.
  • CodeStream: Helps to automate the release process for software, including development and testing phases.

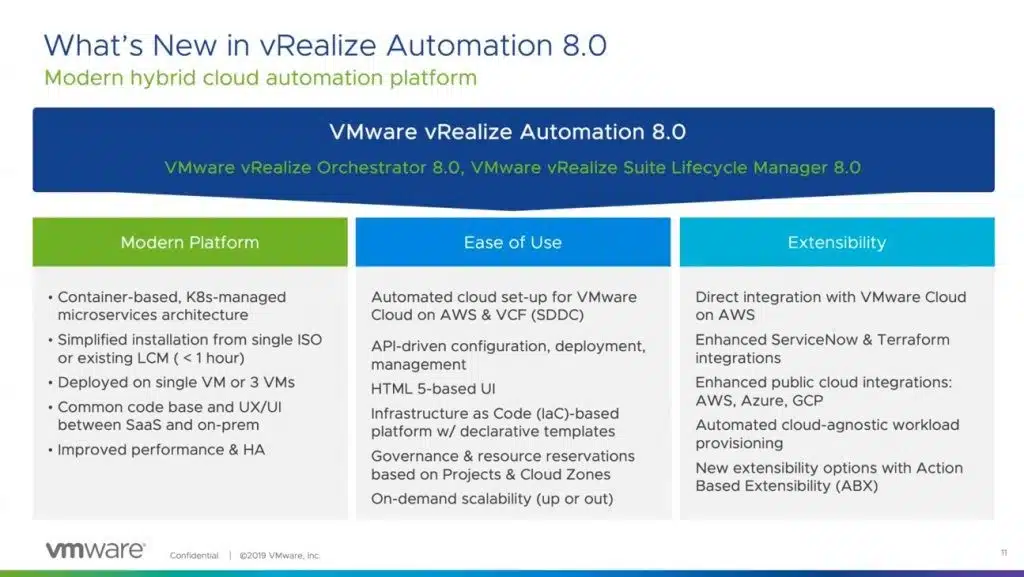

A marketing graphic of vRA 8’s new features (Source)

vRealize Automation Deployment Options

There are two vRealize Automation deployment options:

  • Standard: For testing, proof-of-concept, and smaller environments
  • Clustered: For larger, highly available, enterprise-grade environments

The Standard Deployment Architecture uses three appliances as demonstrated in the diagram below.

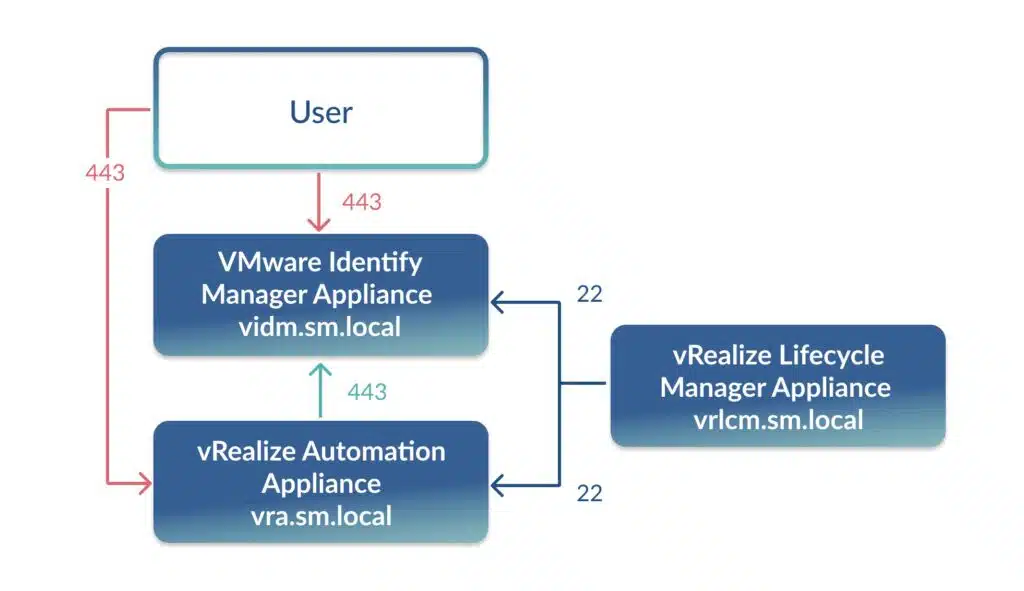

A standard deployment consisting only of three appliances. (Source)

With Clustered Deployment Architecture vRA runs across three clustered appliances behind a supported load balancer (such as NSX-T). VMware Identity Manager is also clustered across three appliances and accessed via a Load Balancer. The load balancer is configured to regularly test the health of the appliances and redirect traffic to surviving members should one fail. The vRealize Lifecycle Manager is placed into an HA-enabled vSphere cluster but is deployed as a single node and does not yet support being clustered.

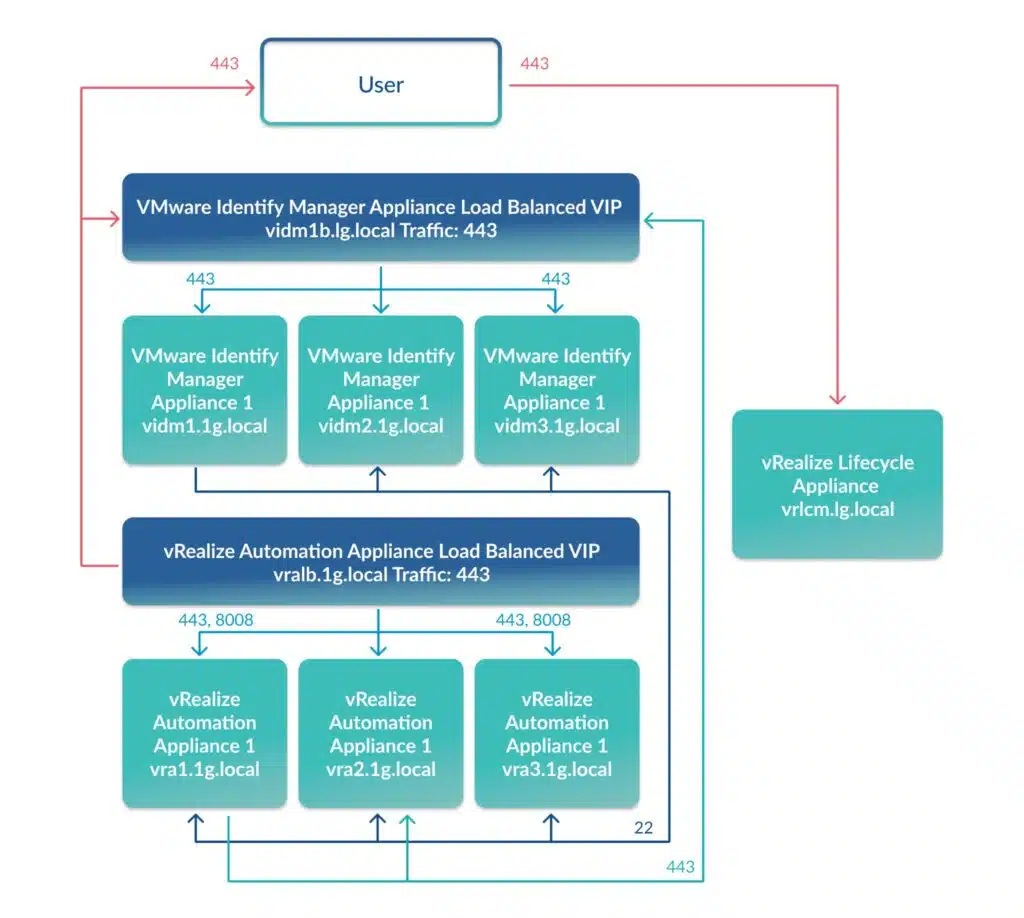

Enterprise-grade deployment of vRA (Source)

vRealize Automation 8 Deployment Process

The vRealize Easy Installer streamlines vRA installation and makes deployment far less error-prone than previous versions of vRealize Automation. The basic vRealize Automation installation steps are:

  1. Download the vRA Easy Installer ISO from VMware
  2. Mount the ISO and run the installer
  3. Deploy vRealize Lifecycle Manager via the installer
  4. VIM is deployed by Lifecycle Manager
  5. vRA is deployed by Lifecycle Manager
  6. vRA is configured and the vRA services are started

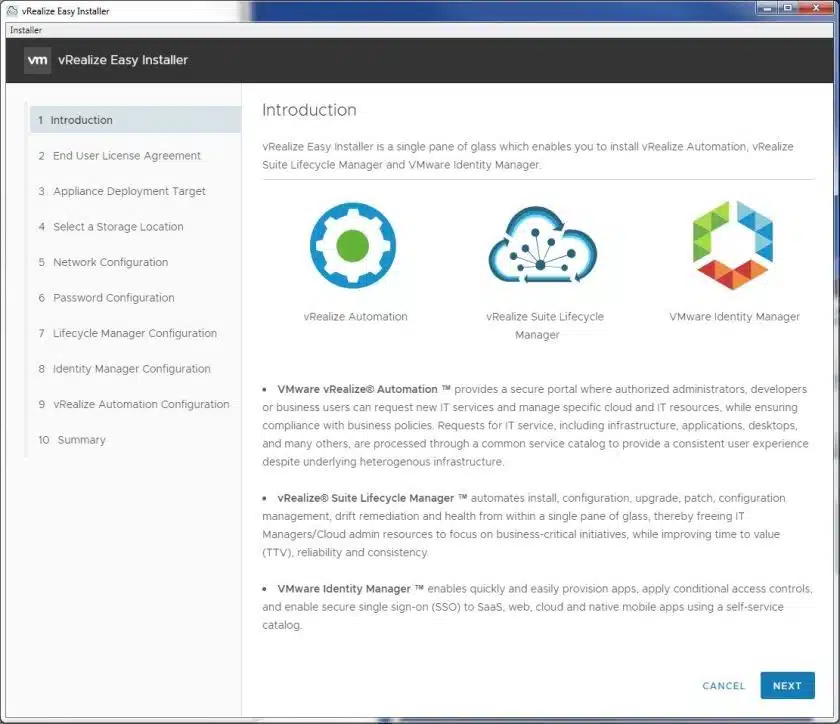

The vRA 8 Easy Installer (Source)
